Product Overview

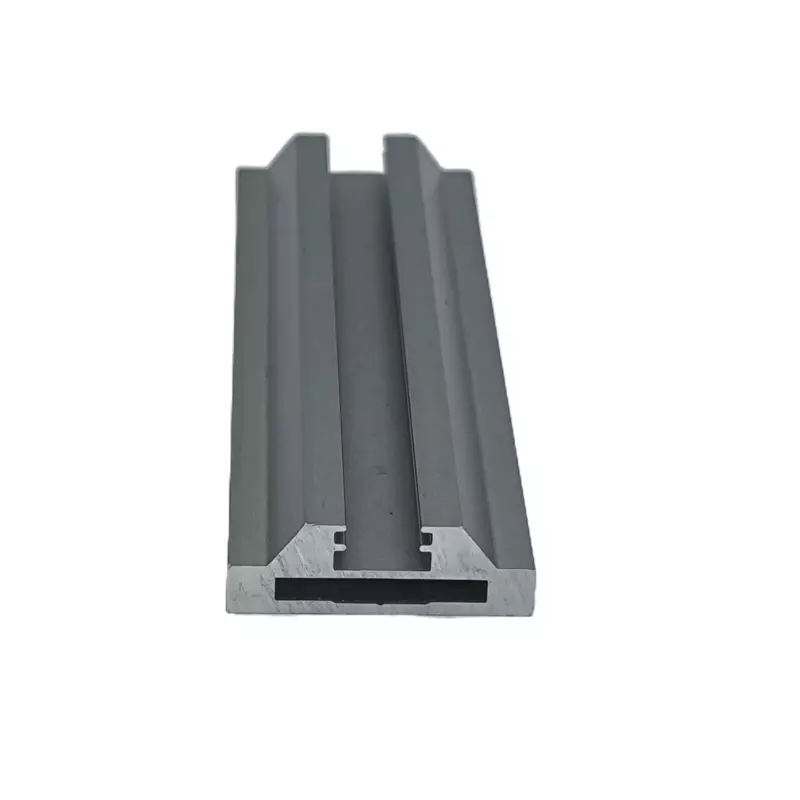

Our curtain wall profile extrusion molds are engineered for high-performance architectural aluminum systems. Designed with precision and durability in mind, these molds enable the production of complex, high-strength profiles that meet rigorous international standards for modern building envelopes. Ideal for creating energy-efficient, aesthetically striking facades, our molds support the fabrication of profiles for structural glazing, pressure plates, mullions, transoms, and custom architectural elements.

Key Features

• High-Precision Flow Design: Optimized material distribution ensures uniform wall thickness and superior surface finish of extruded profiles.

• Modular Design: Interchangeable components allow for efficient maintenance and rapid customization to accommodate profile design changes.

• Durable Construction: Fabricated from premium H13 steel (or other alloys as needed) with deep hardening treatment, ensuring extended service life under high-temperature/pressure extrusion processes.

• Thermal Management: Advanced cooling channel design guarantees stable thermal control during extrusion, reducing deformation risks.

• Versatility: Compatible with 6061, 6063, and other aluminum alloys, supporting profiles for structural, thermal break, and decorative applications.

Technical Specifications

• Manufacturing Standards: ISO 9001:2015 certified, compliant with ASTM/EN standards.

• Processing Technology: CNC machining, EDM, wire-cutting (including slow wire-cutting), and high-speed milling.

• Surface Treatment: Nitriding, polishing, or specialized coatings available to enhance wear/corrosion resistance.

• Quality Control: 100% dimensional inspection via CMM and profile projection gauges.

• Lead Time: 15-25 days depending on complexity; urgent options available.

Applications

• Unitized curtain wall systems

• Stick-built curtain wall systems

• Window wall and ribbon window profiles

• Sunshades/louvres and decorative façades

• Pressure plates and adapters

Why Choose Our Molds?

• Expertise: Over 15 years of specialization in architectural profile mold design.

• Performance Guarantee: Molds deliver consistent extrusion speeds ≥25m/min with minimal downtime.

• Global Support: Technical service and maintenance guidance provided worldwide.

• Custom Solutions: Collaborate with our engineering team to develop molds for innovative profile designs.
